Example for a simple decorator. More...

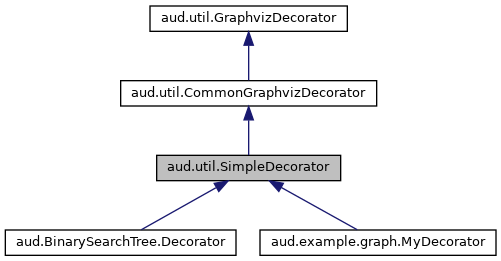

Inheritance diagram for aud.util.SimpleDecorator:

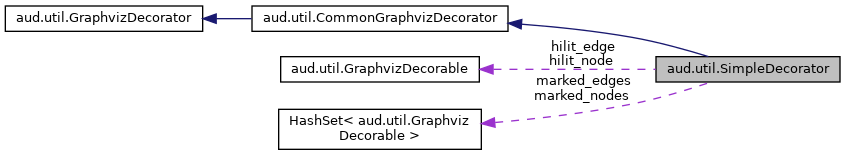

Collaboration diagram for aud.util.SimpleDecorator:

Public Member Functions
void	highlightNode (GraphvizDecorable object)
	Set highlighted node. More...

void	highlightEdge (GraphvizDecorable object)
	Set highlighted edge. More...

void	markNode (GraphvizDecorable object)

void	unmarkNode (GraphvizDecorable object)
	unmark node `object` More...

void	unmarkAllNodes ()
	unmark all nodes More...

void	markEdge (GraphvizDecorable object)

void	unmarkEdge (GraphvizDecorable object)
	unmark edge `object` More...

void	unmarkAllEdges ()
	unmark all edges More...

String	getNodeDecoration (GraphvizDecorable object)
	get node decoration More...

String	getEdgeDecoration (GraphvizDecorable object)
	get node decoration More...

Public Member Functions inherited from aud.util.CommonGraphvizDecorator
abstract void	highlightNode (GraphvizDecorable object)
	Set highlighted node. More...

abstract void	highlightEdge (GraphvizDecorable object)
	Set highlighted edge. More...

abstract void	markNode (GraphvizDecorable object)

abstract void	unmarkNode (GraphvizDecorable object)
	unmark node `object` More...

abstract void	unmarkAllNodes ()
	unmark all nodes More...

abstract void	markEdge (GraphvizDecorable object)

abstract void	unmarkEdge (GraphvizDecorable object)
	unmark edge `object` More...

abstract void	unmarkAllEdges ()
	unmark all edges More...

String	getGraphLabel ()
	get label More...

void	setGraphLabel (String text)
	set label More...

void	clear ()
	Clear all decorations. More...

String	getGraphDecoration (GraphvizDecorable object)
	get graph decoration (returns same for all nodes/edges) More...

String	getAllNodesDecoration ()
	get standard decoration for all nodes (list head) More...

String	getAllEdgesDecoration ()
	get standard decoration for all edges (list head) More...

String	getGlobalStyle ()
	get global style (returns same for all nodes/edges) More...

Public Member Functions inherited from aud.util.GraphvizDecorator
String	getNodeDecoration (GraphvizDecorable object)
	get node decoration More...

String	getEdgeDecoration (GraphvizDecorable object)
	get node decoration More...

String	getGraphDecoration (GraphvizDecorable object)
	get graph decoration (returns same for all nodes/edges) More...

String	getAllNodesDecoration ()
	get standard decoration for all nodes (list head) More...

String	getAllEdgesDecoration ()
	get standard decoration for all edges (list head) More...

String	getGlobalStyle ()
	get global style (returns same for all nodes/edges) More...

String	getFullNodeDecoration (GraphvizDecorable object)
	concatenates `getAllNodesDecoration` and `getNodeDecoration` More...

String	getFullEdgeDecoration (GraphvizDecorable object)
	concatenates `getAllEdgesDecoration` and `getEdgeDecoration` More...

Protected Attributes
GraphvizDecorable	hilit_node = null

GraphvizDecorable	hilit_edge = null

HashSet< GraphvizDecorable >	marked_nodes = new HashSet<GraphvizDecorable>()

HashSet< GraphvizDecorable >	marked_edges = new HashSet<GraphvizDecorable>()

Protected Attributes inherited from aud.util.CommonGraphvizDecorator
String	all_nodes_style = "shape=circle"

String	all_edges_style = null

String	global_style = null

String	graph_style = "fontsize=24"

String	graph_label = null

String	hilit_node_style = "style=filled,fillcolor=yellow,penwidth=2"

String	hilit_edge_style = "color=red,penwidth=2"

String	marked_node_style = "style=filled,fillcolor=lightgray,penwidth=1.5"

String	marked_edge_style = "color=blue,penwidth=1.5"

Detailed Description

Example for a simple decorator.

The entire state is held in the decorator instance. There is no access of/no need for node and edge attributes.

Definition at line 10 of file SimpleDecorator.java.

Member Function Documentation

◆ getEdgeDecoration()

String aud.util.SimpleDecorator.getEdgeDecoration ( GraphvizDecorable object )

get node decoration

Reimplemented from aud.util.GraphvizDecorator.

Reimplemented in aud.example.graph.MyDecorator.

Definition at line 54 of file SimpleDecorator.java.

                                                                      {
    if (object==hilit_edge)
      return hilit_edge_style;
    else if (marked_edges.contains(object))
      return marked_edge_style;
    else
      return null;
  }

References aud.util.SimpleDecorator.hilit_edge, aud.util.CommonGraphvizDecorator.hilit_edge_style, aud.util.CommonGraphvizDecorator.marked_edge_style, and aud.util.SimpleDecorator.marked_edges.

◆ getNodeDecoration()

String aud.util.SimpleDecorator.getNodeDecoration ( GraphvizDecorable object )

get node decoration

Reimplemented from aud.util.GraphvizDecorator.

Reimplemented in aud.BinarySearchTree.Decorator, and aud.example.graph.MyDecorator.

Definition at line 45 of file SimpleDecorator.java.

                                                                      {
    if (object==hilit_node)
      return hilit_node_style;
    else if (marked_nodes.contains(object))
      return marked_node_style;
    else
      return null;
  }

References aud.util.SimpleDecorator.hilit_node, aud.util.CommonGraphvizDecorator.hilit_node_style, aud.util.CommonGraphvizDecorator.marked_node_style, and aud.util.SimpleDecorator.marked_nodes.

◆ highlightEdge()

void aud.util.SimpleDecorator.highlightEdge ( GraphvizDecorable object )

Set highlighted edge.

See also: highlightNode

Reimplemented from aud.util.CommonGraphvizDecorator.

Definition at line 21 of file SimpleDecorator.java.

                                                                {
    hilit_edge=object;
  }

References aud.util.SimpleDecorator.hilit_edge.

Referenced by aud.util.GraphDemo.main().

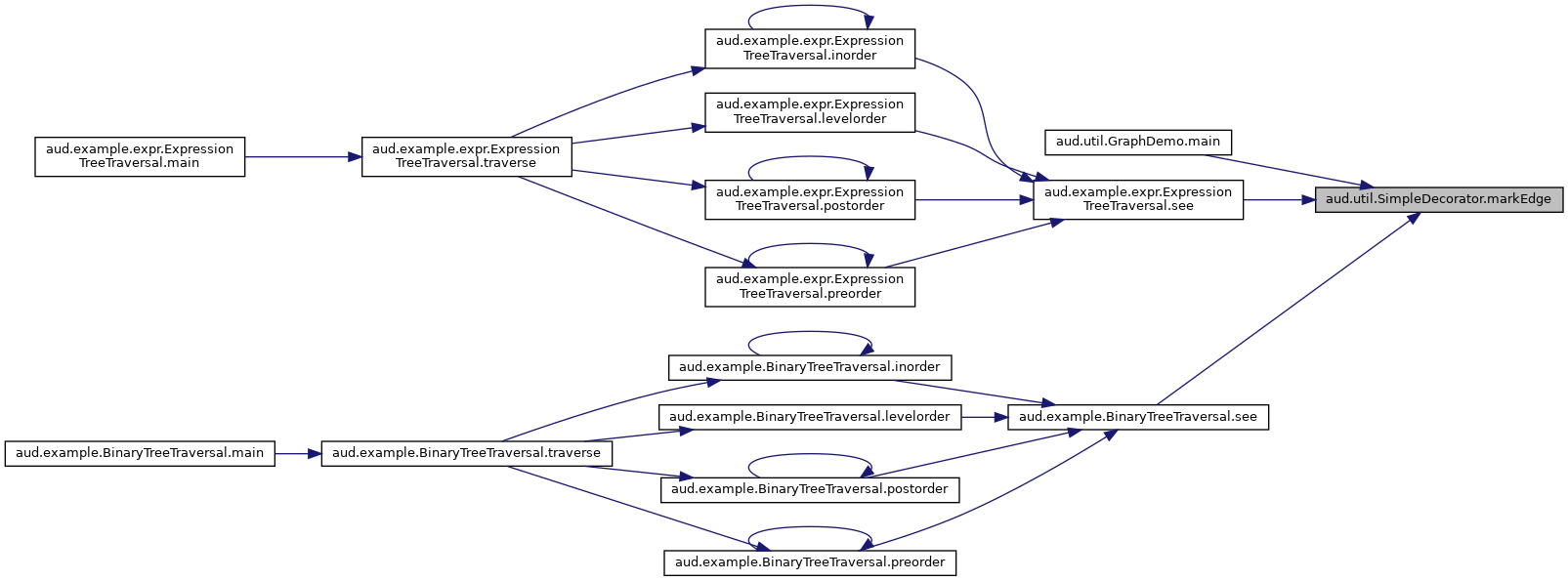

Here is the caller graph for this function:

◆ highlightNode()

void aud.util.SimpleDecorator.highlightNode ( GraphvizDecorable object )

Set highlighted node.

There is exactly one or no such node.

Parameters

object node or null (no highlight)

Reimplemented from aud.util.CommonGraphvizDecorator.

Definition at line 18 of file SimpleDecorator.java.

                                                                {
    hilit_node=object;
  }

References aud.util.SimpleDecorator.hilit_node.

Referenced by aud.BinarySearchTree.Decorator.highlight(), aud.example.expr.ExpressionTreeTraversal.levelorder(), aud.util.GraphDemo.main(), aud.example.expr.ExpressionTreeTraversal.output(), aud.example.BinaryTreeTraversal.output(), aud.example.BinaryTreeTraversal.traverse(), and aud.example.expr.ExpressionTreeTraversal.traverse().

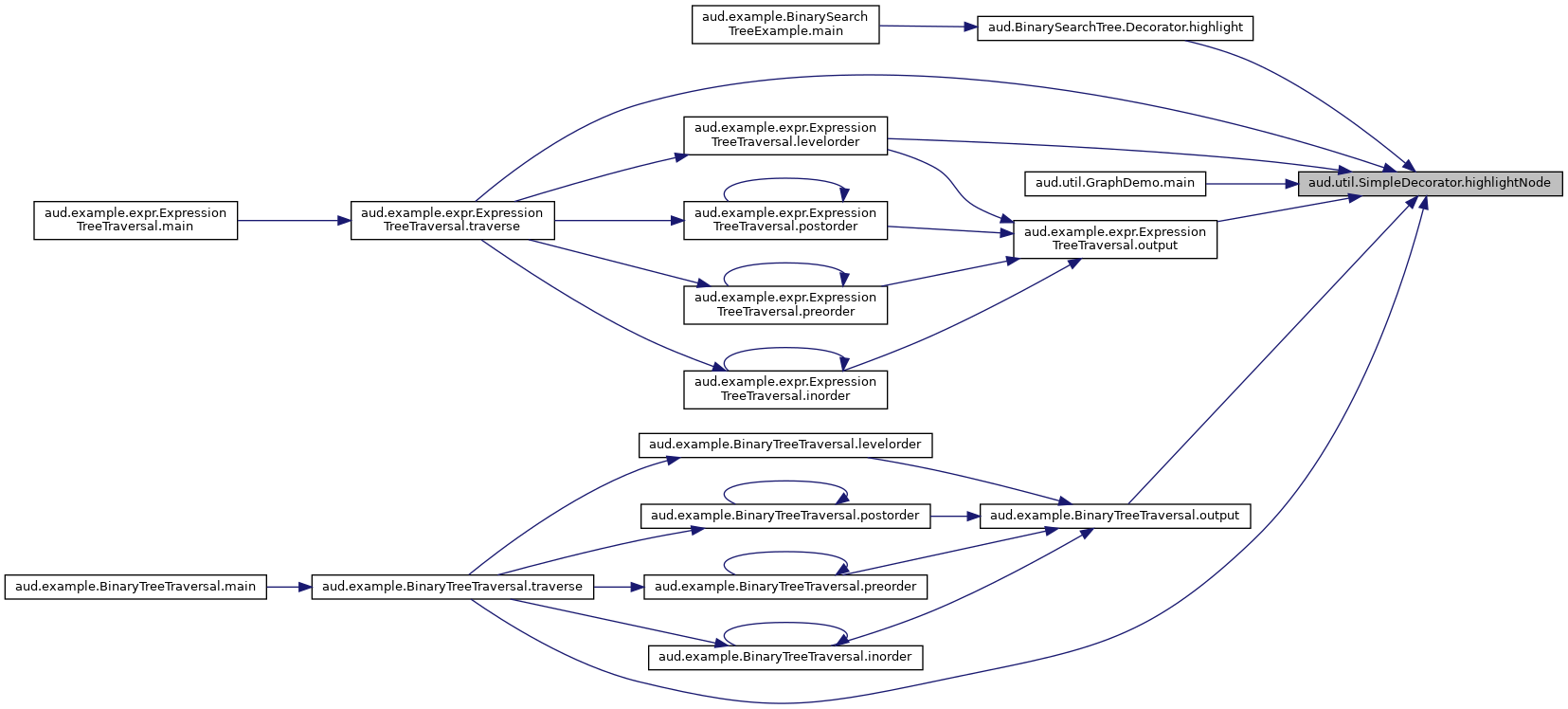

Here is the caller graph for this function:

◆ markEdge()

void aud.util.SimpleDecorator.markEdge ( GraphvizDecorable object )

Reimplemented from aud.util.CommonGraphvizDecorator.

Definition at line 35 of file SimpleDecorator.java.

                                                           {
    marked_edges.add(object);
  }

References aud.util.SimpleDecorator.marked_edges.

Referenced by aud.util.GraphDemo.main(), aud.example.expr.ExpressionTreeTraversal.see(), and aud.example.BinaryTreeTraversal.see().

Here is the caller graph for this function:

◆ markNode()

void aud.util.SimpleDecorator.markNode ( GraphvizDecorable object )

Reimplemented from aud.util.CommonGraphvizDecorator.

Definition at line 25 of file SimpleDecorator.java.

                                                           {
    marked_nodes.add(object);
  }

References aud.util.SimpleDecorator.marked_nodes.

Referenced by aud.util.GraphDemo.main(), aud.BinarySearchTree.Decorator.mark(), aud.example.expr.ExpressionTreeTraversal.output(), and aud.example.BinaryTreeTraversal.output().

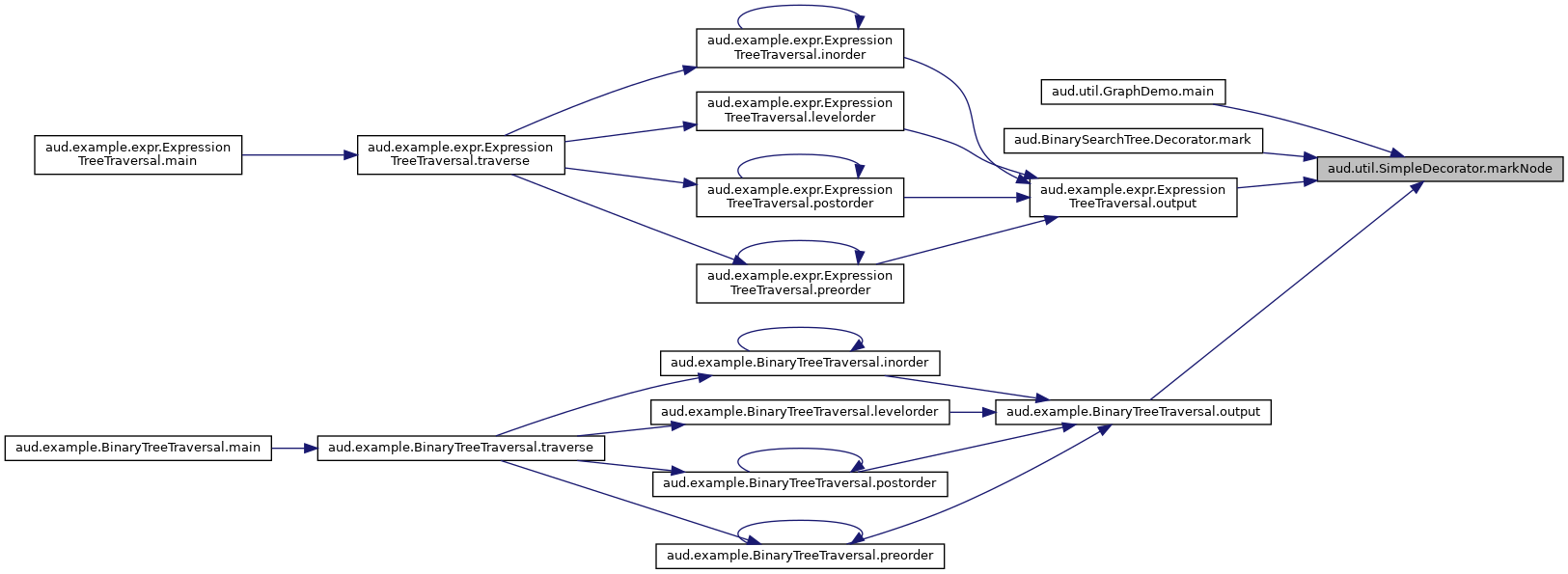

Here is the caller graph for this function:

◆ unmarkAllEdges()

void aud.util.SimpleDecorator.unmarkAllEdges ( )

unmark all edges

Reimplemented from aud.util.CommonGraphvizDecorator.

Definition at line 41 of file SimpleDecorator.java.

                                         {
    marked_edges.clear();
  }

References aud.util.SimpleDecorator.marked_edges.

◆ unmarkAllNodes()

void aud.util.SimpleDecorator.unmarkAllNodes ( )

unmark all nodes

Reimplemented from aud.util.CommonGraphvizDecorator.

Definition at line 31 of file SimpleDecorator.java.

                                         {
    marked_nodes.clear();
  }

References aud.util.SimpleDecorator.marked_nodes.

◆ unmarkEdge()

void aud.util.SimpleDecorator.unmarkEdge ( GraphvizDecorable object )

unmark edge object

Reimplemented from aud.util.CommonGraphvizDecorator.

Definition at line 38 of file SimpleDecorator.java.

                                                             {
    marked_edges.remove(object);
  }

References aud.util.SimpleDecorator.marked_edges.

◆ unmarkNode()

void aud.util.SimpleDecorator.unmarkNode ( GraphvizDecorable object )

unmark node object

Reimplemented from aud.util.CommonGraphvizDecorator.

Definition at line 28 of file SimpleDecorator.java.

                                                             {
    marked_nodes.remove(object);
  }

References aud.util.SimpleDecorator.marked_nodes.

Referenced by aud.util.GraphDemo.main(), and aud.BinarySearchTree.Decorator.unmark().

Here is the caller graph for this function:

Member Data Documentation

◆ hilit_edge

GraphvizDecorable aud.util.SimpleDecorator.hilit_edge = null

protected

Definition at line 13 of file SimpleDecorator.java.

Referenced by aud.util.SimpleDecorator.getEdgeDecoration(), and aud.util.SimpleDecorator.highlightEdge().

◆ hilit_node

GraphvizDecorable aud.util.SimpleDecorator.hilit_node = null

protected

Definition at line 12 of file SimpleDecorator.java.

Referenced by aud.util.SimpleDecorator.getNodeDecoration(), and aud.util.SimpleDecorator.highlightNode().

◆ marked_edges

HashSet<GraphvizDecorable> aud.util.SimpleDecorator.marked_edges = new HashSet<GraphvizDecorable>()

protected

Definition at line 16 of file SimpleDecorator.java.

Referenced by aud.util.SimpleDecorator.getEdgeDecoration(), aud.util.SimpleDecorator.markEdge(), aud.util.SimpleDecorator.unmarkAllEdges(), and aud.util.SimpleDecorator.unmarkEdge().

◆ marked_nodes

HashSet<GraphvizDecorable> aud.util.SimpleDecorator.marked_nodes = new HashSet<GraphvizDecorable>()

protected

Definition at line 15 of file SimpleDecorator.java.

Referenced by aud.util.SimpleDecorator.getNodeDecoration(), aud.util.SimpleDecorator.markNode(), aud.util.SimpleDecorator.unmarkAllNodes(), and aud.util.SimpleDecorator.unmarkNode().

The documentation for this class was generated from the following file:

SimpleDecorator.java
