aud.example.AVLTreeExample Class Reference

example: insert entries and maintain balance More...

Inheritance diagram for aud.example.AVLTreeExample:

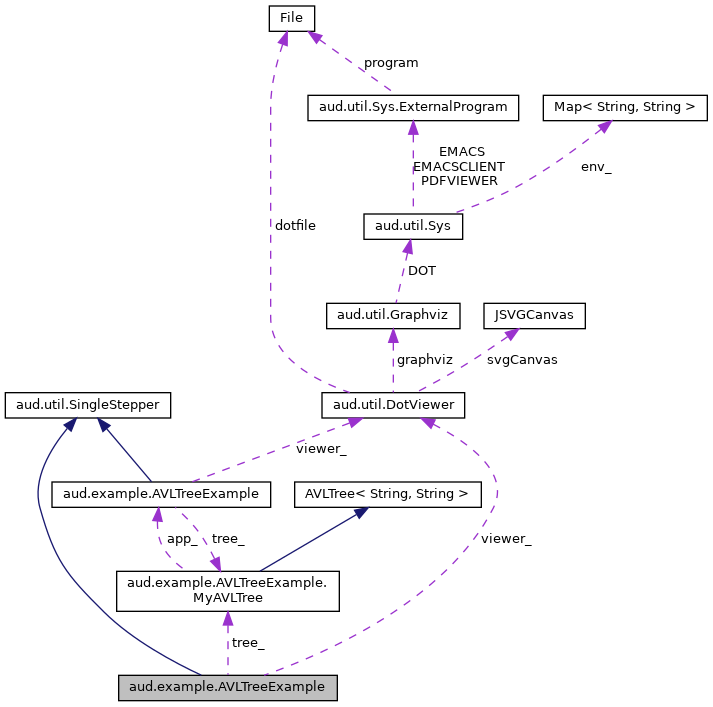

Collaboration diagram for aud.example.AVLTreeExample:

Classes
class	MyAVLTree

Public Member Functions
	AVLTreeExample ()
	create application instance More...
MyAVLTree	getTree ()
Public Member Functions inherited from aud.util.SingleStepper
	SingleStepper (JFrame parent)
	create new instance More...
	SingleStepper (String caption)
	create new instance More...
JFrame	parent ()
	get parent widget More...
void	halt (String text, int timeout)
	display text and wait for user or timeout More...
void	setTimeout (int timeout)
	Set global timeout. More...
SingleStepper	whereAmI ()
	print location of calling code More...
SingleStepper	showSource ()
	jmp to caller's location in editor (emacs only) More...
void	halt (String text)
	display text and wait for user (or global timeout) More...
void	halt ()
	wait for user More...

Static Public Member Functions
static void	main (String[] args)
	start interactive example More...
static void	main (String[] args)

Protected Member Functions
void	onHalt ()
Protected Member Functions inherited from aud.util.SingleStepper
JComponent	createComponents ()
void	onNext ()
	call on button pressed More...
void	println (String text)
	print to both, text area and stdout More...
void	onHalt ()

Protected Attributes
MyAVLTree	tree_ = null
DotViewer	viewer_
Protected Attributes inherited from aud.util.SingleStepper
JFrame	frame
JTextArea	history
JButton	next
Object	monitor = new Object()
int	timeout = 0

Detailed Description

example: insert entries and maintain balance

See also

AVLTree

Definition at line 11 of file AVLTreeExample.java.

Constructor & Destructor Documentation

AVLTreeExample()

aud.example.AVLTreeExample.AVLTreeExample

(

)

create application instance

Definition at line 29 of file AVLTreeExample.java.

                          {
    super("aud.example.AVLTreeExample");
    tree_=new MyAVLTree(this);
  }

References aud.example.AVLTreeExample.tree_.

Referenced by aud.example.AVLTreeExample.main().

Here is the caller graph for this function:

Member Function Documentation

getTree()

MyAVLTree aud.example.AVLTreeExample.getTree

(

)

Definition at line 34 of file AVLTreeExample.java.

{ return tree_; }

References aud.example.AVLTreeExample.tree_.

Referenced by aud.example.AVLTreeExample.main().

Here is the caller graph for this function:

main()

static void aud.example.AVLTreeExample.main ( String[]  args )

static

start interactive example

Reimplemented from aud.util.SingleStepper.

Definition at line 42 of file AVLTreeExample.java.

                                         {

    final String HELP=
      "usage: java aud.example.AVLTreeExample [pause]\n"+
      "       Reads and insert words from standard input.\n"+
      "       'quit' quits.\n"+
      "\tpause [milliseconds] set pause between animation steps\n"+
      "\t      A value of 0 requires to explicitly push the 'continue'\n"+
      "\t      button. The default value is 0 (or the value of then\n"+
      "\t      environment variable 'AUD_TIMEOUT')!\n";

    AVLTreeExample app=new AVLTreeExample();

    if (args.length>0) {
      try {
        app.setTimeout(Integer.parseInt(args[0]));
      } catch (NumberFormatException e) {
        System.err.println(HELP);
        System.exit(-1);
      }
    }

    app.halt("EMPTY TREE");

    Scanner s=new Scanner(System.in);
    s.useDelimiter("\\s+");

    while (s.hasNext()) {
      String key=s.next();
      if (key.compareTo("quit")==0)
        break;
      else {
        app.getTree().insert(key,null);
        app.halt("inserted '"+key+"' and rebalanced");
      }
    }
    app.halt("QUIT");
    System.exit(0);
  }

References aud.example.AVLTreeExample.AVLTreeExample(), aud.example.AVLTreeExample.getTree(), aud.util.SingleStepper.halt(), and aud.util.SingleStepper.setTimeout().

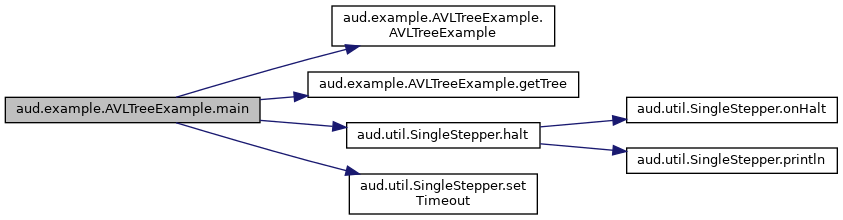

Here is the call graph for this function:

onHalt()

void aud.example.AVLTreeExample.onHalt ( )

protected

Reimplemented from aud.util.SingleStepper.

Definition at line 36 of file AVLTreeExample.java.

                                    {
    if (tree_!=null)
      viewer_.display(tree_);
  }

References aud.util.DotViewer.display(), aud.example.AVLTreeExample.tree_, and aud.example.AVLTreeExample.viewer_.

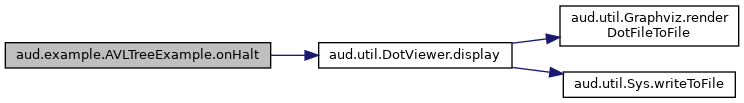

Here is the call graph for this function:

Member Data Documentation

tree_

MyAVLTree aud.example.AVLTreeExample.tree_ = null

protected

Definition at line 24 of file AVLTreeExample.java.

Referenced by aud.example.AVLTreeExample.AVLTreeExample(), aud.example.AVLTreeExample.getTree(), and aud.example.AVLTreeExample.onHalt().

viewer_

DotViewer aud.example.AVLTreeExample.viewer_

protected

Initial value:

= DotViewer.displayWindow
    ((String) null,"aud.example.AVLTreeExample")

Definition at line 25 of file AVLTreeExample.java.

Referenced by aud.example.AVLTreeExample.onHalt().

---

The documentation for this class was generated from the following file:

• AVLTreeExample.java
